EPS 3D CNC shape cutting machine
EPS 3D CNC shape cutting machine
Main technical parameters of EPS 3D CNC shape cutting machine:
Item |
Unit |
ABE-CNC3-300 |
ABE-CNC3-600 |
ABE-CNC3-800 |
Max. products size |
mm |
3000*1250*1250 |
6000*1250*1250 |
8000*1250*1250 |
Transformer capacity |
KVA |
10 |
10 |
10 |
Total loading power |
KW |
17.8 |
17.8 |
17.8 |
Max. overall size |
mm |
5800*1900*2400 |
8800*1900*2400 |
10800*1900*2480 |
Machine weight |
kgs |
1600 |
2800 |
3200 |
Main Features of EPS 3D CNC shape cutting mchines:
1.The machine makes use of controlling the X-axis and the Y-axis to combine them into a graph. At the same time, the resistance wire is used to cut all kinds of EPS products. Its operation route is to make use of the graphics inputted into the computer, and automatically sends impulse signals to control the X and Y axes.When the machine is equipped with a rotation device, the 3D (three- dimensional) can be realized;
2.Two methods: to directly use AutoCAD to draw or to scan the graphics and then input them into the computer;
3. The Single-Wire CNC Shape Cutting Machine is applicable to cutting products with big volumes or in small numbers；
4.The Multiple-Wire CNC Shape Cutting Machine is applicable to cutting products with small volumes or in large quantities. The Resistance Wire Cutting System can use 20 resistance wires at the same time, after inputting the graphics into the computer all the resistance wires can run in parallel, and can cut 20 complicated 3D (three- dimensional) shapes per each cutting.
Products typical application:
EPS incised bear

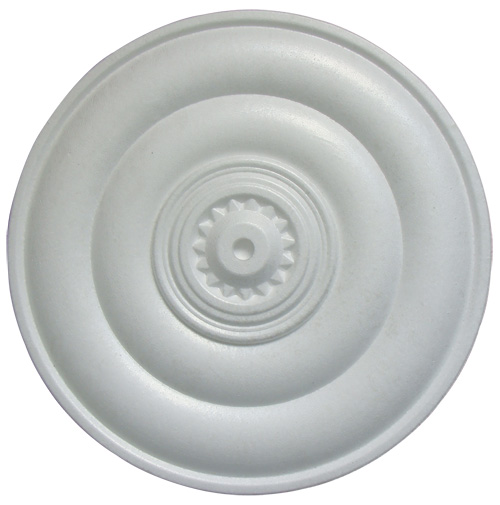

ESP product for celling

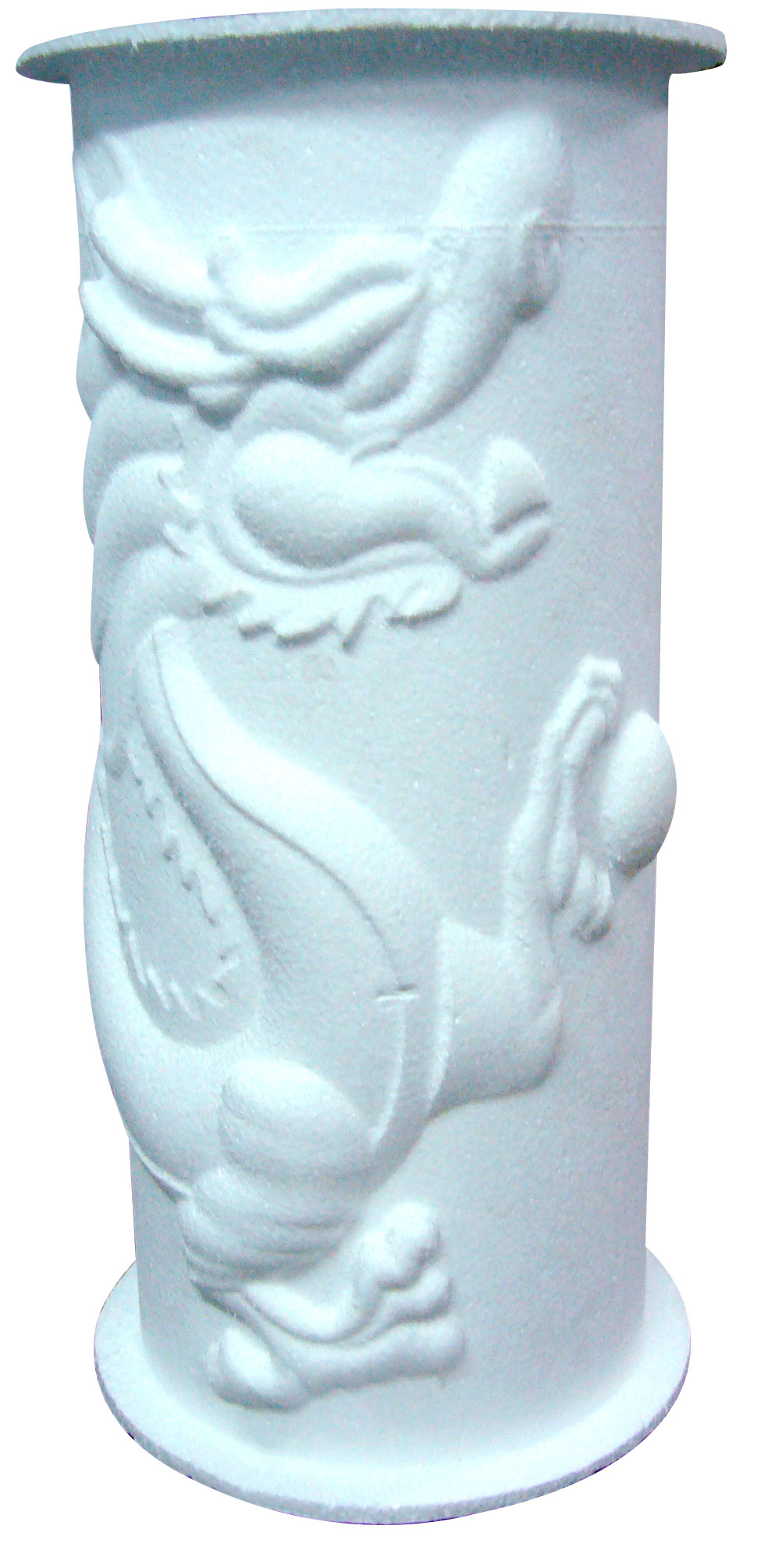

Graven EPS product

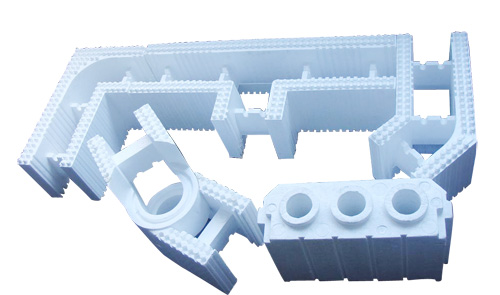

Shape cutted EPS
