3D Panel Mesh Machinery

Wire Mesh Welding Machine of 3D Panel Line

  • Wire Mesh Welding Machine of 3D Panel Line

  • Wire Mesh Welder

  • Wire Mesh Welding Line

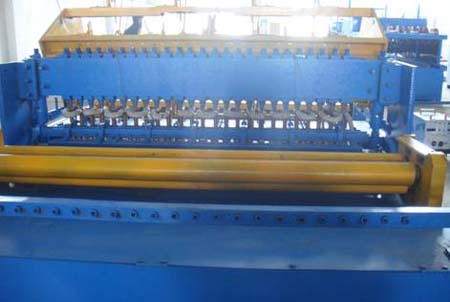

  • Wire Mesh Welding Machine

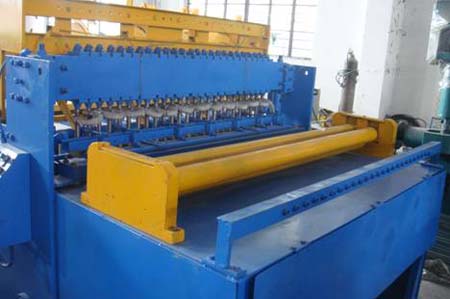

  • Wire Welding Machine of 3D Panel Line

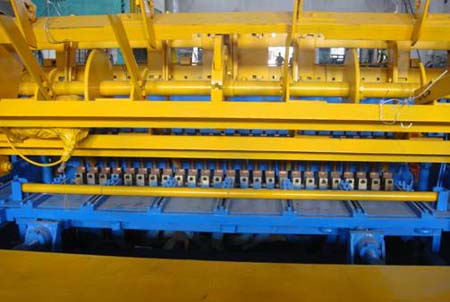

  • Wire Mesh Welding Line


Description:
3D wire mesh welding line is for the production of reinforcement 3D mesh panels.

Main Specifications of wire mesh welding machine:
Longitudinal wire diameter: 2.5-4 mm
Cross wire diameter: 2.5-4 mm
Maximum number of longitudinal wires: 25
Step between longitudinal wires: 50 mm maybe could be variable5mm-10mm
Step between cross wires: 50 mm maybe could be variable 5mm-10mm
Mesh width: 1200 mm-1250 mm
Mesh length: 1000 - 6000 mm
Welding speed: 60 x 25 welding strokes/min , about 10 pcs/hour
Diagonal wire diameter: 3 mm
Quantity of diagonal wires: mode 1 = 100 per sqm and mode 2 = 50 per sqm
Distance between the two mesh sheets : 50 - 150 mm(Panel)
Minimum length of panel: 2000 mm
Maximum length of panel: 6000 mm
Average output based on one 8h shift per day : 240 sqm/h 3D PANELS
with truss steps of 100 mm
Controls : At your specification
Electrical power supply : 440 V AC - 3 phases - 50 cycles
