EPS Batch Pre-Expander

  • EPS Batch Pre-expander

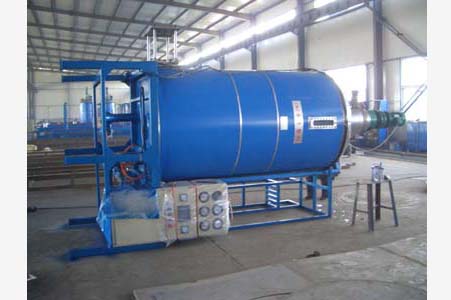

  • Automatic EPS Batch Pre-expander

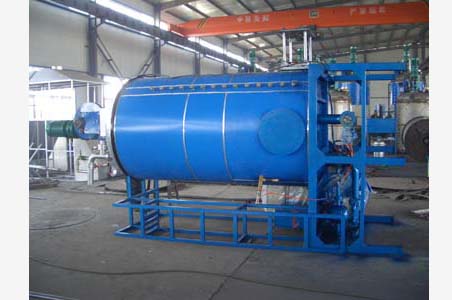

  • EPS Pre-expander

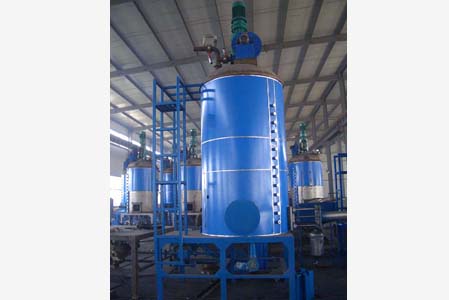

  • Chamber Of EPS Batch Pre-expander

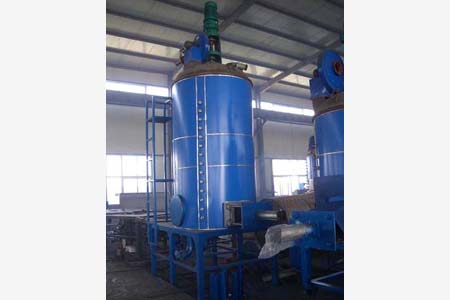

  • EPS Automatic Batch Pre-expander

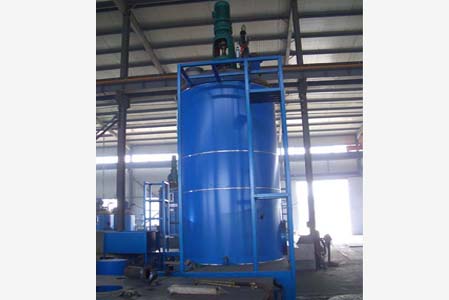

  • EPS Batch Pre-expander Chamber
Technical Parameters of Automatic EPS Batch Pre-Expander:
No.
Items
Unit
ABE-JP-1600
ABE- JP-1200
ABE-JP-1100
1
Chamber Size
Diameter
mm
1600
1200
1100
Height
mm
2500
1800
1800
2
Chamber Vol
m3
4
1.9
1.7
3
Steam Inlet DN
mm
80
50
50
4
Air-Compressed Inlet DN
mm
40
25
25
5
Steam Pressure
Mpa
0.3-0.8
0.3-0.8
0.3-0.8
6
Air-Compressed Pressure
Mpa
0.5-0.8
0.5-0.8
0.5-0.8
7
Power
kw
23
16.3
12
8
Control Mode
Electronic computation
Electronic computation
Electronic computation
9
Drying Way
Fluidized Bed
Foaming Tank Drying
Fluidized Bed
10
Foaming Density
kg/m3
11-50
11-50
12-30
11
Capacity
kg/h
900-1800
400-600
280-500
12
Max. Contour Size
mm
12000*2650*5500
7500*3150*3800
7500*3000*3500
13
Machine Weight
kg
6500
3800
3300

Features of Full Automatic EPS Batch Pre-Expander:

  1. After the first phase of pre-expansion of the EPS raw material, the second and third phases of pre-expansions are optional. If annual production capacity is less than 2000 tons, then only one unit of the EPS-ABE1600 is needed, which is capable of pre-expanding heavy and light raw materials simultaneously; and as such can meet production requirements, improve production efficiency and reduce production space and energy;
  2. The electrical system has the PLC controller (Programmable Logic Controller) which is easy to use and operation is stable;
  3. The machine uses the Fully Automatic Spiral Feeder and Negative Pressure Feeder to do the feeding, and also uses the Photoelectric Control System and Weight Simulation Module to ensure precise weighing;
  4. The Steam System has the Steam-Reducing Valve which strictly controls the steam pressure inside the foaming tank;
  5. When the density of the pre-expanded beads exceeds 20kg/m3, this machine uses valve to precisely control the temperature tolerance inside the foaming tank to within ±2℃, ensuring uniformity during foaming.

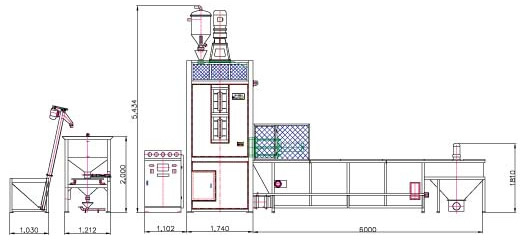

Drawing of EPS Batch Pre-Expander:
