C-type EPS Block Cutting Machine

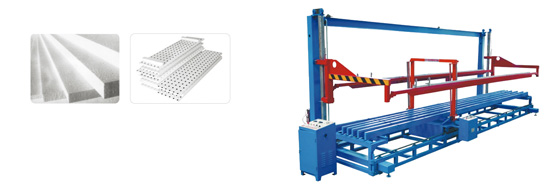

EPS block cutting machine

Technical parameters of EPS block cutting line:
ABE-PSC200-800 Block Cutting Machine
Item
ABE-PSC200
ABE-PSC400
ABE-PSC600
ABE-PSC800
Max. block size(mm)
2000*1300*1300
4000*1300*1300
6000*1300*1300
8000*1300*1300
Connected load(kw)
22.3
22.3
22.3
22.3
Overall dimension(mm)
4400*2600*3250
640*2600*3250
8400*2600*3250
10400*2600*3250
Machine weight(kg)
1300
2000
2800
3200
Note: We can make machine according to customers¡¯ request

Main features of EPS block cutting machine:
1. Main frame of the EPS block cutting machine is welded from square profile steel, with strong structure, high strength and no deformation;
2. The machine has horizontal, vertical and cross cutting devices, and can realize 3-direction cutting , i.e. horizontal, vertical and cross cutting;
3. The machine adopts converter speed advantageous in stable moving, large range (0-4m/min) of step-less speed governing, suitable for requirements of low-speed cutting and fast cutter-retract;
4. Voltage adjustment: adopts 10KVA multi-tapped special transformer for adjustment with wide adjustable range and multiple voltages; 5. This type of cutting machine has multi-wire cross cutting system, use motor and converter to motivate cutting frame upward and downward. Maximum 20 wires can be set for cross cutting.
