EPS Block Moulding Machine

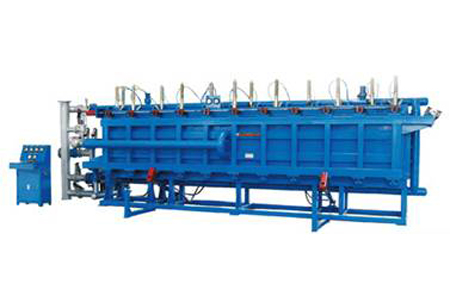

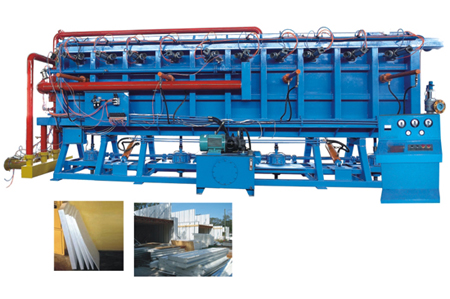

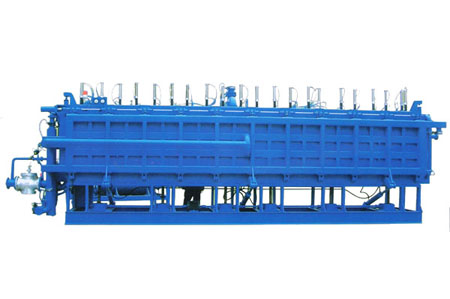

EPS Air Cooling Type Block Molding Machine
 EPS Air Cooling Block Moulding Machine  EPS Air Cooling Block Molding Machine  EPS Air Cooling Type Block Molding Machine  EPS Air Cooling Block Moulding Machine EPS Air Cooling Block Molding Machine EPS Air Cooling Type Block Molding Machine
|
Description of EPS Block Boulding Bachine:
Our Air Cooling Type EPS Block Molding Machine is one of the main EPS Machinery. We can supply EPS Block Molding Machine which produces EPS products density range from 5kg/m3 to 35kg/m3 according to the size and demand of the enterprise. The output is about 2T to 5T per hour according to different density and EPS materials.
Technical Parameters of Air Cooling Type EPS Block Molding Machine:
Item |
Unit |
ABE-FL2000 |
ABE-FL6000 |
ABE-FL8000 |
Cavity inner net size |
MM |
2030×1020×630 |
6080×1250×630 |
8100×1250×630 |
Finished product size |
MM |
2000×1000×600 |
6000×1220×600 |
8000×1220×600 |
Cavity volume |
M3 |
1.3 |
4.78 |
6.37 |
Density |
g/l |
5～30 |
5～50 |
5～50 |
Productivity |
PCs/h |
2～30 |
2～18 |
2～15 |
Steam inlet diamter |
MM |
DN65 |
DN150 |
DN150 |
Steam pressure |
MPa |
0.6～0.8 |
0.6～0.8 |
0.6～0.8 |
Compressed air diameter |
Inch |
1 |
11/2 |
11/2 |
Oil pump |
Max flow |
ml/r |
35 |
35 |
35 |
High + Low pressure |
MPa |
12+5 |
12+5 |
12+5 |
Silo |
Feeding guns |
PCs |
5 |
10 |
12 |
Volume |
M3 |
2.5 |
8 |
10 |
Motor power |
Hydraulic station |
KW |
4 |
5.5 |
5.5 |
Elevator |
KW |
|
|
|
Blower |
KW |
5.5 |
7.5 |
7.5 |
Installation power |
KW |
9.5 |
13 |
13 |
Overall Dimension(L*W*H) |
M |
4.2X1.95X2.2 |
8.8×2.6×2.4 |
10.8×2.6×2.4 |
Machine weight |
T |
5 |
10.5 |
12 |
