Products>>EPS Production Line>>EPS Machinery>>EPS Block Moulding Machine>>Automatic EPS Vacuum Block Moulding Machine

EPS Block Moulding Machine

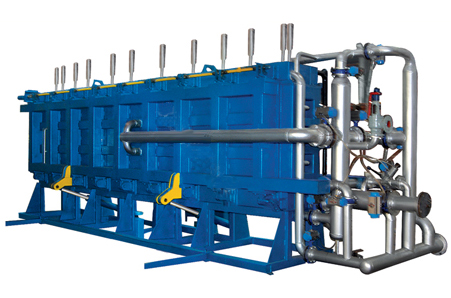

EPS Automatic Vacuum Block Moulding Machine

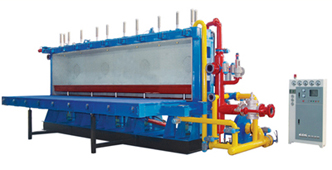

  • Automatic EPS Block Moulding Machine

  • EPS Vacuum Block Molding Machine

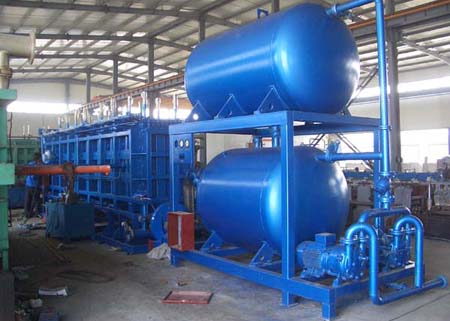

  • EPS Automatic Vacuum Block Moulding Machine

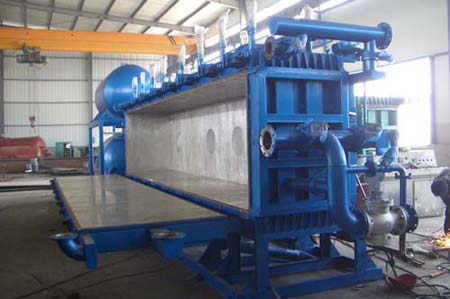

  • Open of EPS Block Molding Machine

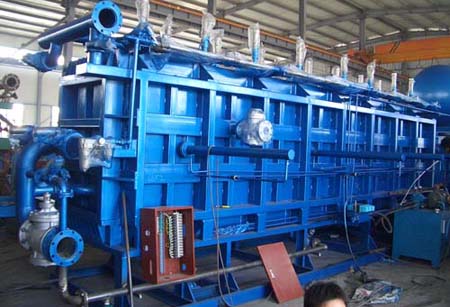

  • EPS Vacuum Block Molding Machine

  • EPS Automatic Vacuum Block Moulding Machine
Technical Parameters of Automatic EPS Block Molding Machine:
No.
Items
Unit
ABE-ZK6000V
EPS-ZK6000CV
EPS-ZK8000V
EPS-ZK8000CV
1
Mould Size
mm
6120×1230×1050
6080×1230×630
8110×1240×1040
8110×1230×630
2
Mould Volume
m3
7.96
7.96

10.46
6.28
3
Products Density/Proportion
kg/m3
6-40
6-45
6-35
6-40
4
Production Capacity
block/h
4-12
4-13
3-11
4-12
5
Steam Pressure
Mpa
0.6
0.6
0.6
0.6
6
Steam Inlet DN
mm
150
100
150
150
7
Air-compressed Inlet DN
mm
50
50
65
65
8
Power Supply
 Power
kw
30
30
Voltage
v
380
380
9
Control Mode
Automatic
Automatic
Automatic
Automatic
10
Structural Features
Hydraulic Sliding-door Vacuum Cooling
Hydraulic Sliding-door Vacuum Cooling
Hydraulic Sliding-door Vacuum Cooling
Hydraulic Sliding-door Vacuum Cooling
11
Control System
PLC with Touch Screen
PLC with Touch Screen
PLC with Touch Screen
PLC with Touch Screen
12
Max. Contour Size
Mm
14000×4000×3000
14000×4000×3000
16000×4000×3000
16000×3000×3000
13
Machine Weight
Tons
15
12
17
13
14
Automatic Feeding Device
Supplied
Optional
Supplied
Optional
15
Electronic Weight
Supplied
Optional
Supplied
Optional
16
Printing
Optional
Optional
Optional
Optional

Main Features of EPS Block Molding Machine:
1. With the use of PLC Controller (Programmable Logic Controller) and Touch Screen, the automatic looping process of opening and closing of the moulds, feeding, heating, heat preservation, cooling, mould ejection, and releasing the final product from the machine will be accomplished;
2. The Automatic Vacuum Control System does the feeding, heating, heat preservation and cooling;

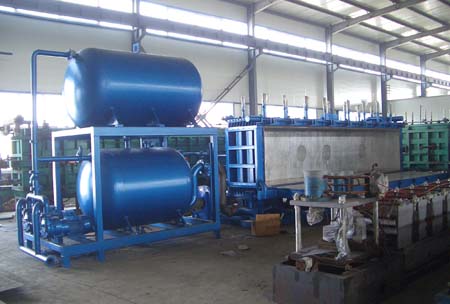

3. The Vacuum System consists of the Vacuum Storage Tank, Vacuum Condensate Tank, and highly efficient water-recycling vacuum pump;
4. The machine is coupled by using high quality welding method, and to get rid of the rust, polishing, smoothing and aging treament, which gives the machine high strength, and without deformation. The density of the EPS Block can reach 6-40kg/m3, with fast EPS Block forming speed, uniform bonding, low moisture content, and with very minor deformation;
5. Applying a special Teflon coating to the surface of the mould cavity (Optional) makes the EPS Block to be easily ejected or released out of the mould;
6. The thickened wall Vacuum EPS Block Forming Machine has Automatic Conveyer, Automatic Electronic Weighing Scale, and the Automatic Printer;
7. This machine can be used to produce the width of 850mm, 950mm and 1150mm EPS Blocks, and also produce the width of 1000mm EPS Block for buildings;

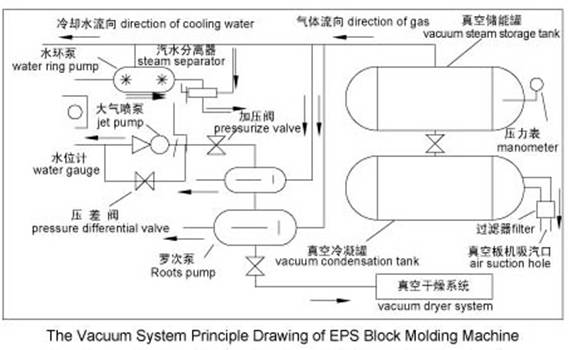

The Vacuum System Principle Drawing of EPS Vacuum Block Molding Machine:


Applications of Automatic EPS Vacuum Block Moulding Machine:

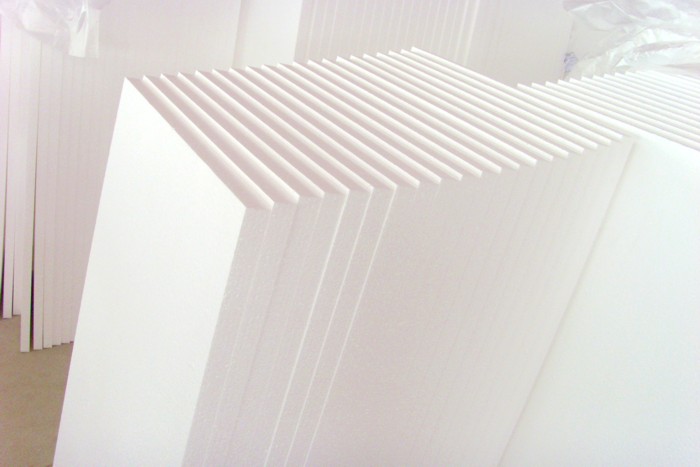

EPS Block

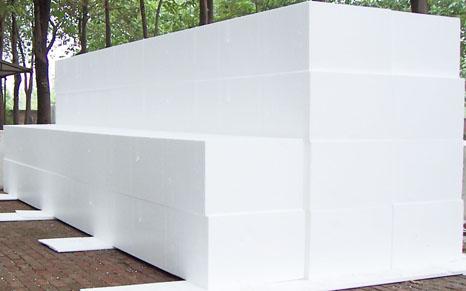

EPS Boards

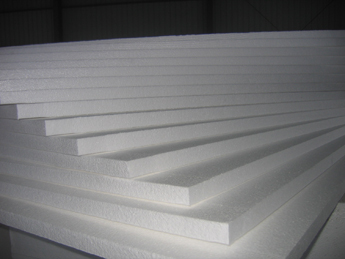

EPS Sheets
